Gott-Mugnolo equal-area elliptical

Classifications

lenticular
equal-area
minimum-error

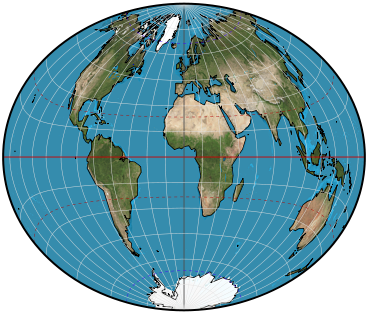

Graticule

Meridians: Central meridian is a straight line 84.7% as long as the equator, with constant scale. If the entire projection were scaled by 1.172112 horizontally and 0.85316079 vertically, then the central meridian would have no distortion. Other meridians are complex curves concave toward the central meridian.
Parallels: Complex curves convex toward the straight equator. Perpendicular to the central meridian and equally spaced along it.
Poles: Points.
Symmetry: About the central meridian and the equator.

Scale

Nowhere correct.

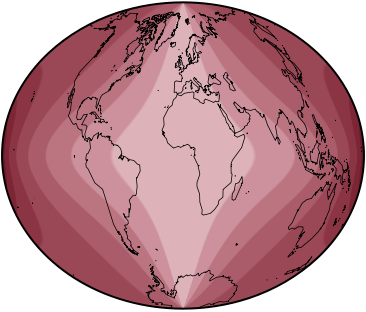

Distortion

Nowhere low. However, changes in distortion are low across most of the map, leading to lower errors in distance than most global projections.

Similar projections

Gott elliptical projection is identical except for horizontal and vertical scaling.

Origin

Presented by J. Richard Gott and Charles Mugnolo in 2007.
