Trystan Edwards
Description
Cylindric equal-area projection optimized for United States latitudes.
Classifications
cylindric
equal-area

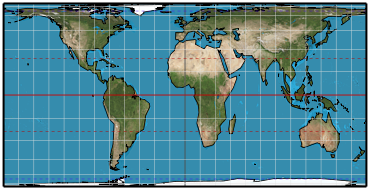

Graticule
Meridians: Straight, evenly spaced, 50.4% the length of the parallels.
Parallels: Straight, with variable spacing.
Scale
Scale is correct along 37°24′N/S parallels and constant along all parallels.

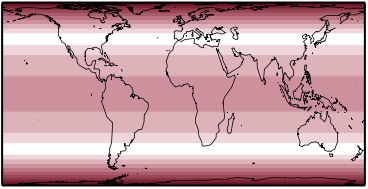

Distortion
Free of distortion along the 37°24′N/S parallels and constant along all parallels.
Similar projections
This is a specialization of the cylindric equal-area projection, arranged to present the United States with low distortion.
Very similar to Hobo-Dyer.
Origin
Proposed by Trystan Edwards in 1953.
Description ©2010–2020 Mapthematics LLC.
